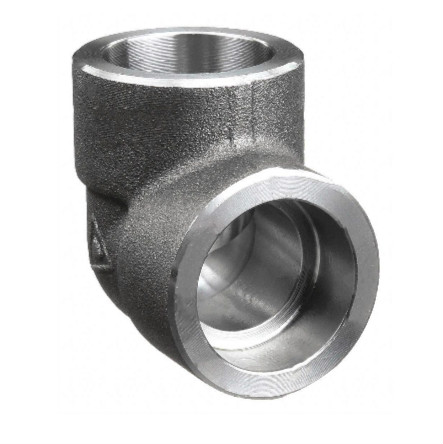

Socket Weld 90 Deg Elbow
Description
Pandurang Engineering Work provides a variety of products to its customers, especially Socket Weld 90° Elbows. They are offered to clients with the option of customizing the size as per the individual purchasers. Socket Weld is pipe attachment detail in which a pipe is inserted into the recessed area of a valve, fitting or flange. Stainless Steel Socket Weld 90° Elbows make 90° changes of direction in the run of the pipe. These ANSI B16.11 Forged Socket Weld 90° Elbows come in two types; short radius elbow and long radius elbow. These fittings add pressure losses to the system due to impact, re-acceleration and friction. As an ISO certified company, HGFF Group Co., Ltd is one of the top manufacturers and stockists of ASME B16.11 Socket Weld 90° Elbows. It is also made available to clients in customized sizes.
Product Structure
Standard Specification for Socket Weld 90 Deg Elbow
Dimensions: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size: 1/8” NB TO 4” NB
Pressure Class: 3000 LBS, 6000 LBS, 9000 LBS
Form: Forged Elbow, 90 Deg Elbow
Material & Grades of Forged Socket Weld 90 Deg Elbow:
Stainless Steel Forged Socket Weld 90 Deg Elbow:
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316Ti, F316H, F316LN, F317, F317L,
F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Socket Weld 90 Deg Elbow:
ASTM A182 – F51, F53, F55 S 31803, S 32205, S 32505, S 32550, S 32750, S 32760, S 32950
Carbon Steel Forged Socket Weld 90 Deg Elbow:
ASTM/ASME A 105, ASTM/ASME A 350 LF 2, ASTM/ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C,
API 5L GR. B, API 5L X42, X 46, X 52, X 60, X 65 & X 70, ASTM A 691 GR. A, B & C
Alloy Steel Forged Socket Weld 90 Deg Elbow:
ASTM / ASME A182, ASTM / ASME A335, ASTM A 234 GR P1, P 5, P 9, P 11, P 12, P 22, P 23, P 91,
ASTM / ASME A 387 GR. 1, GR. 2, 1/4 CR, 1/2 CR, 9CR, 91
Copper Alloy Steel Forged Socket Weld 90 Deg Elbow:
ASTM / ASME SB 111 UNS NO. C 10100, C 10200, C10300, C 10800
ASTM / ASME SB 466 NO. C 70600, C 71500, ASTM / ASME SB 466 UNS NO. C 70600 (CU–NI–90/10), C 71500 (CU – NI–70/30)
Nickel Alloy Forged Socket Weld 90 Deg Elbow:
ASTM SB 564, SB 336, ASTM SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201),
UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3), UNS 8825 (INCONEL 825),
UNS 6600 (INCONEL 600), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)
ASME B16.11 Forged Socket Weld 90 Deg Elbow Available Types
| Forged Socket weld Elbow 90 Degree | Forged Socket weld Long Radius 90 Degree Elbows |
| 150 lb. Socket Weld Fittings Pipe Elbow | Socket weld 90° Short Radius Elbow |
| ASME B16.11 90 deg Socket weld Elbow | 90 Degree Elbow 3000LB Socket Weld |
| Socket Weld Fittings 90 Degree Pipe Elbow | Long Radius Socket Weld 90 Deg. Forged Elbows |
| ANSI B16.11 90 Degree Forged Elbow | BS 3799 Forged 90 Degree Elbow |
| Forged Socket weld 90 Deg Elbow | Socket weld 90° Pipe Elbow |
| Socket weld 90deg. Elbow | High Quality Socket weld 90° Elbow |
| 90° Socket Weld Elbow | Socket Weld 90 elbow |
