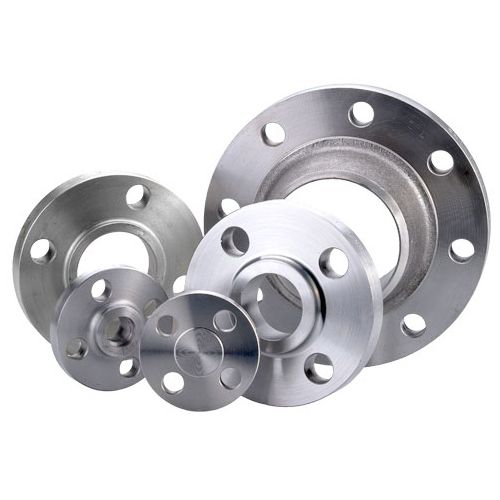

Forged Flanges
Description
Pandurang Engineering Work is an ISO manufacturer, Forged Flanges besides being their exporter to the Middle Eastern and European countries. A Stainless Steel Forged Flange can be defined as a metal disc, installed at the back of a tube, valve or any other object. It allows simple Fitting and replacement of a piping system. They undergo the forging process whereby mechanical, energy is applied to a steel flange, to change its shape when in a solid state. ANSI B16.5 Forged Flanges possess a better impact strength than Cast flanges and are stronger and reliable. We are suppliers of Titanium, Alloy Steel, Carbon Steel, Monel, Nickel, CuproNickel, Stainless Steel and Inconel Forged Flanges to the chemical units, Oil and refineries, shipbuilding, petrochemicals and gas processing and distribution centers.
Product Structure
Standard Specication For Forged Flanges
Dimensions: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API–605, AWWA, Custom Drawings
Size: 1/2” (15 NB) to 48” (1200NB)
Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND–6,10, 16, 25, 40 Etc.
DIN: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
BS: BS4504, BS4504, BS1560, BS10
Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Material & Grades of Forged Flanges :
Stainless Steel Forged Flanges :
ASTM A182, A 240 F 304, 304H, 304L, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Forged Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F 51, F 53, F 55, F 60, F 61
Carbon Steel Forged Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350, ASTM A 181 LF 2 / A 516 Gr 70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Forged Flanges :
ASTM A350 LF2, LF3
Alloy Steel Forged Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Forged Flanges :
ASTM B61, B62 , SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02201), Nickel 201 (UNS No. N02201),
Monel 400 (UNS No. N04400), Monel K500 (UNS No. N05500), Inconel 600 (UNS No. N06600),
Inconel 625 (UNS No. N08825), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825),
Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601),
Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
ASME B16.5 Forged Flanges Available Types
| Forged Flange | Forged Steel Flanges |
| ANSI B16.5 Forged Flanges | Forged Flange Dimensions |
| ASME B16.5 Forged Flanges | ANSI B16.5 Class 150 Forged Flanges |
| Stainless Steel Forged Flanges | Suppliers SS Forged Flange |
| Forged Plate Flanges Dealer | ASME B16.47 Series A and B Forged Flanges Exporter |
| Carbon Steel Forged Flange | High Quality Forged Flanges Manufacturer |
| Super Duplex Steel Forged Flange | Copper Nickel Forged Pipe Flanges |
| Titanium ASME B16.47 Series A and B Forged Flanges | Inconel Forged Flanges |
